Guide to Buying a Horizontal Boring Mill

The Ultimate Guide to Finding the Perfect Used Horizontal Boring Mill For Sale

If you are looking to buy a horizontal boring mill to machine large, complex workpieces with precision, this guide will walk you through the process by explaining the best features to help you find the perfect horizontal boring machine for your precision machining needs. We will show you the features of various types of horizontal boring mills so you can make an informed decision based on your requirements and budget. Not only will you learn about the essential features to consider when buying a horizontal boring machine, but you will also gain valuable insights into the applications and materials these machines can handle. Whether you are machining large engine blocks, heavy machinery components, or precision parts, this guide will provide all the information you need to find the perfect horizontal boring mill for your machining needs.

Why You Need a Horizontal Boring Mill for Large Component Machining

Horizontal boring mills are essential for anyone working with large, heavy workpieces that require precision boring, milling, and drilling operations. These powerful and versatile machines allow you to machine a wide range of materials and component sizes with exceptional accuracy and efficiency. With a horizontal boring mill, you can bore precise holes, mill complex surfaces, and perform multiple machining operations on large components that would be challenging to handle on conventional vertical mills, making it a necessary machine tool for various heavy machining applications. One of the primary reasons to invest in a horizontal borer is its ability to handle extremely large and heavy workpieces with superior stability. If you are working on projects that require machining large castings, heavy steel fabrications, or oversized components with deep holes or complex internal features, a horizontal boring machine can help you achieve high-quality results consistently, saving you time and money compared to outsourcing or using multiple smaller machines. The horizontal orientation provides excellent support for long workpieces and allows for superior chip evacuation during deep boring operations, significantly increasing your productivity and machining accuracy. Another key benefit of owning a horizontal boring machine is the opportunity to expand your capabilities and take on a wider range of precision machining projects. As you become more familiar with your horizontal boring mill, you can work with various materials and increasingly complex geometries, allowing you to tackle demanding jobs and offer specialized services to clients in industries such as automotive, power generation, and heavy manufacturing. This can be especially valuable for machine shops and manufacturing facilities looking to diversify their capabilities and improve their competitive edge in the precision machining market.

The versatility of horizontal boring mills extends beyond simple boring operations. Modern horizontal boring mills can perform multiple machining operations, including milling, drilling, tapping, reaming, and facing, all while maintaining the workpiece in a single setup. This multi-functionality reduces handling time, improves accuracy by eliminating setup errors, and increases overall efficiency in machining operations. The horizontal spindle orientation is particularly advantageous for machining long bores, deep holes, and complex internal features that are difficult or impossible to achieve with vertical machines.

Different Types of Horizontal Boring Mills for Heavy Machining

There are several types of horizontal boring mills, each with unique features and capabilities. Understanding these differences can help you determine which machine best fits your specific machining needs.

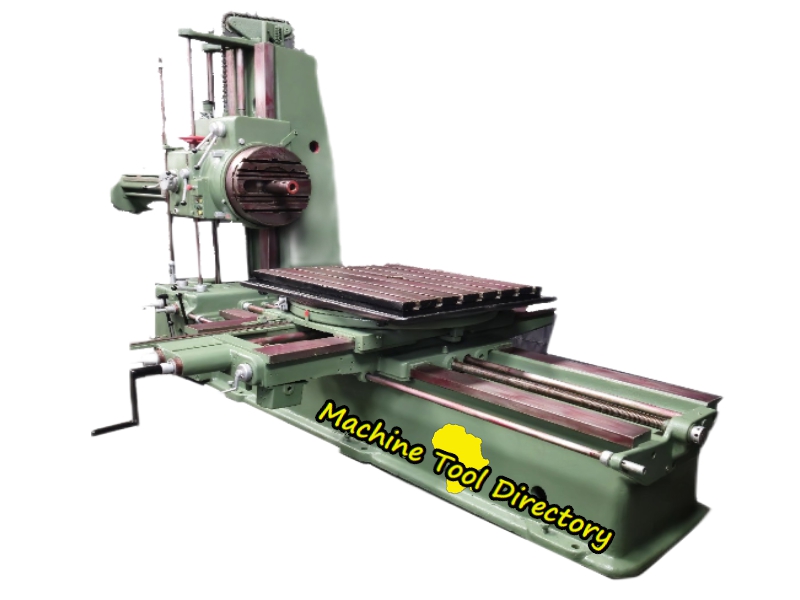

  Table-Type Horizontal Boring Mill: Features a movable table that positions the workpiece relative to the horizontal spindle. Known for versatility and         precision, ideal for various workpiece sizes and configurations. Commonly used for machining engine blocks, transmission cases, and similar     components requiring precise boring and milling.

 Floor-Type Horizontal Boring Mill: Features a fixed table or floor-mounted workpiece support system, with the spindle head moving along ways to   perform machining. Can handle significantly larger and heavier workpieces than table-type models. Essential for industries like automotive and power   generation, where massive structural components and engine parts require precision machining.

 Planer-Type Horizontal Boring Mill: Combines planer mill capabilities with precision boring functions, ideal for machining extremely large workpieces   with multiple surfaces. Used in shipbuilding, heavy equipment manufacturing, and power generation for components like engine beds and large frames.   Often features multiple spindle heads for simultaneous complex machining.

 CNC Horizontal Boring Mills: The most advanced category, featuring computer numerical control systems for complex machining sequences and   improved precision through automated tool paths, feeds, and speeds. Well-suited for production environments requiring precision and repeatability.

Key Considerations When Buying a Horizontal Boring Mill for Heavy Machining

When purchasing a horizontal boring mill, consider these factors to ensure the right investment:

 Spindle Size and Boring Capacity: Determines the maximum size of boring tools and the diameter and depth of holes that can be machined. Choose a   machine that fits your current and future project needs.

 Spindle Power and Speed Range: Affects the machine’s ability to handle different materials and cutting operations. Look for sufficient power and variable   speed capabilities to optimize cutting parameters.

 Table Size, Travel Distances, and Weight Capacity: Table dimensions determine the maximum workpiece size; X, Y, and Z-axis travel define the machining   capabilities. Weight capacity ensures safe handling of heavy components. Consider rotary table capabilities if angular machining is required.

 Tooling Systems and Automation Features: Automatic tool changers, programmable spindle positioning, and integrated measuring systems enhance       precision and efficiency. Evaluate features based on your workflow.

 Control System: Modern CNC controls offer advanced programming, tool life monitoring, and CAD/CAM integration. Choose between manual, semi-   automatic, or full CNC automation based on production needs and operator skill.

Top Features to Look for in a Horizontal Boring Mill for Precision Machining

Robust Construction: Heavy-duty base, precision ground ways, and high-quality spindle bearings ensure stability, accuracy, and longevity. Cast iron construction is preferred for durability.

Spindle Accuracy and Rigidity: Exceptional concentricity, minimal runout, and high rigidity are essential for precision boring and milling. Look for thermal stability and anti-deflection systems.

Advanced Tooling Systems: Automatic tool changers, multiple spindle configurations, and live tooling capabilities improve versatility and productivity.

Additional Features:

    High-resolution position feedback systems

     Thermal compensation systems

     Programmable work supports and steady rests

     Integrated high-pressure coolant systems

     Safety systems (interlocks, barriers, emergency stops)

     Vibration dampening systems

     Automatic spindle orientation

     Through-spindle coolant delivery for deep hole boring

Materials That Horizontal Boring Mills Can Machine

Horizontal boring mills are similarly versatile and capable of machining a wide variety of materials, often overlapping with vertical boring mills but with some distinctions due to their different configurations and typical applications. These machines excel in handling large, heavy, and complex workpieces, often used in industries requiring precision and heavy-duty machining. Common materials machined on horizontal boring mills include:

Cast Iron: Like vertical boring mills, horizontal boring mills effectively machine gray cast iron, ductile iron, and other cast iron types. These materials are      common in large structural components, engine blocks, and pump housings, where the horizontal orientation facilitates easier loading and machining        of long or heavy parts.

Carbon Steel: Horizontal boring mills are well-suited for machining various carbon steels, ranging from mild steels to hardened tool steels. Their robust      construction and powerful spindles allow them to handle the cutting forces involved in steel machining, making them ideal for fabricating heavy steel          parts such as machine bases, frames, and large shafts.

Alloy Steels: These include chrome-molybdenum steels, nickel alloys, and other specialty steels used in demanding applications. Horizontal boring mills    with sufficient spindle power and rigidity can machine these materials efficiently, especially when combined with appropriate tooling and coolant              systems to manage heat and tool wear.

Stainless Steel and Heat-Resistant Alloys: Horizontal boring mills are often employed to machine stainless steels and superalloys used in power generation, and chemical processing industries. Their ability to maintain rigidity and precision during heavy cuts makes them suitable for these tough materials.

Non-Ferrous Metals: Aluminium, brass, bronze, and other non-ferrous metals are also machined on horizontal boring mills, particularly when large or complex parts require precise boring, milling, or drilling operations.

Applications and Industries for Horizontal Boring Mills

Horizontal boring mills are necessary in industries requiring precision machining of large, heavy components:

   Automotive: Machining engine blocks, transmission cases, cylinder bores, and main bearing bores with tight tolerances for performance and reliability.

   Power Generation and Heavy Equipment: Producing large engine components, generator parts, diesel engine blocks, compressor housings, and turbine        components.

   Oil and Gas: Manufacturing pump housings, valve bodies, and fluid handling equipment requiring precise boring for high-pressure applications.

   Machine Tool and Manufacturing Equipment: Producing large machine frames, spindle housings, and precision mechanical components.

When selecting a horizontal boring mill, carefully consider your current and future needs, evaluate the available features and capabilities, and choose a machine that provides the best balance of performance, reliability, and value for your specific applications. With proper selection, installation, and maintenance, a horizontal boring mill can provide decades of reliable service and help your business grow and prosper in the competitive manufacturing marketplace.

View the used horizontal boring mill machines with options available to suit different budgets, production requirements, and facility sizes. Chat with experienced staff with in-depth knowledge of the machines they sell and knowledge of engineering & sheet metal fabrication, they can help you navigate the various features and specifications to find the best horizontal boring mill machine for your machining needs.
